Alpine R2 SB10V BNDL Next Gen 10" R Series Alpine Halo Preloaded Subwoofer Enclosure with S A60M Amplifier & Bass Knob - Premium Car Audio System for Trucks, SUVs & Custom Vehicles

Product Description

Features:

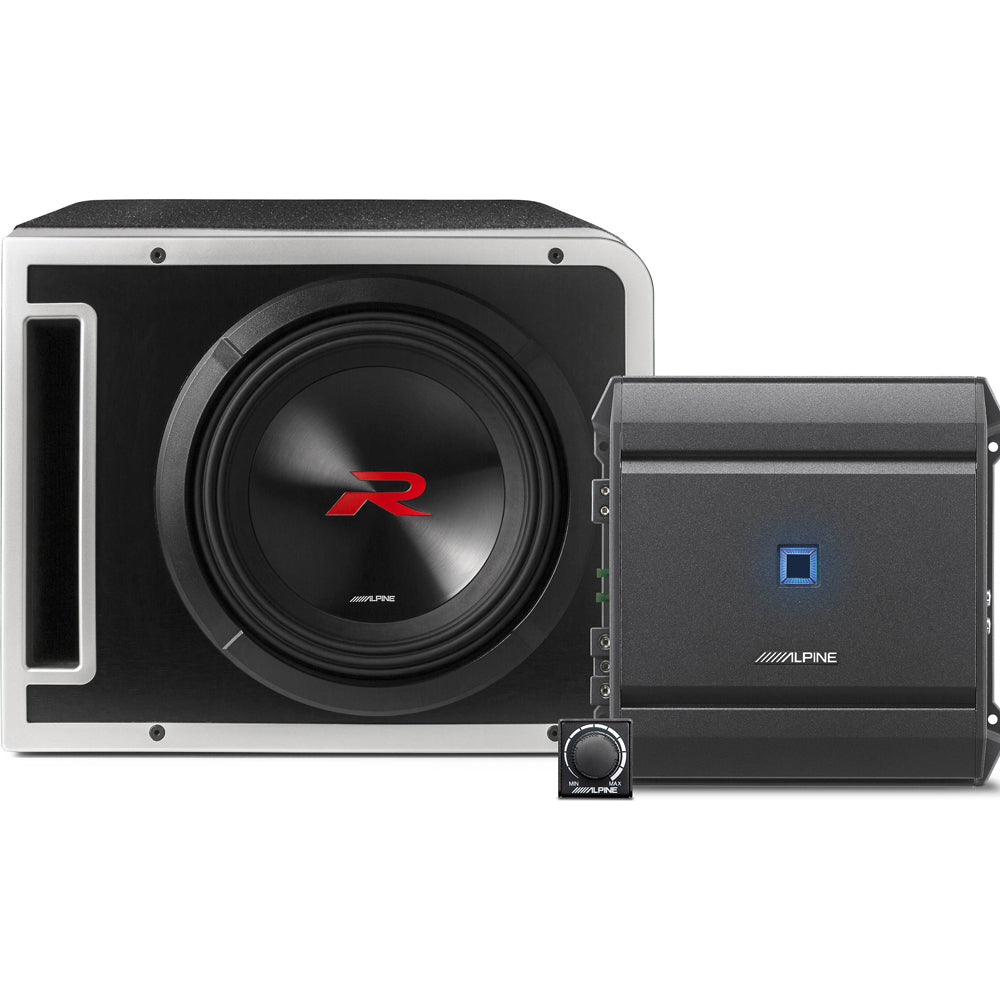

Included with this Bundle:

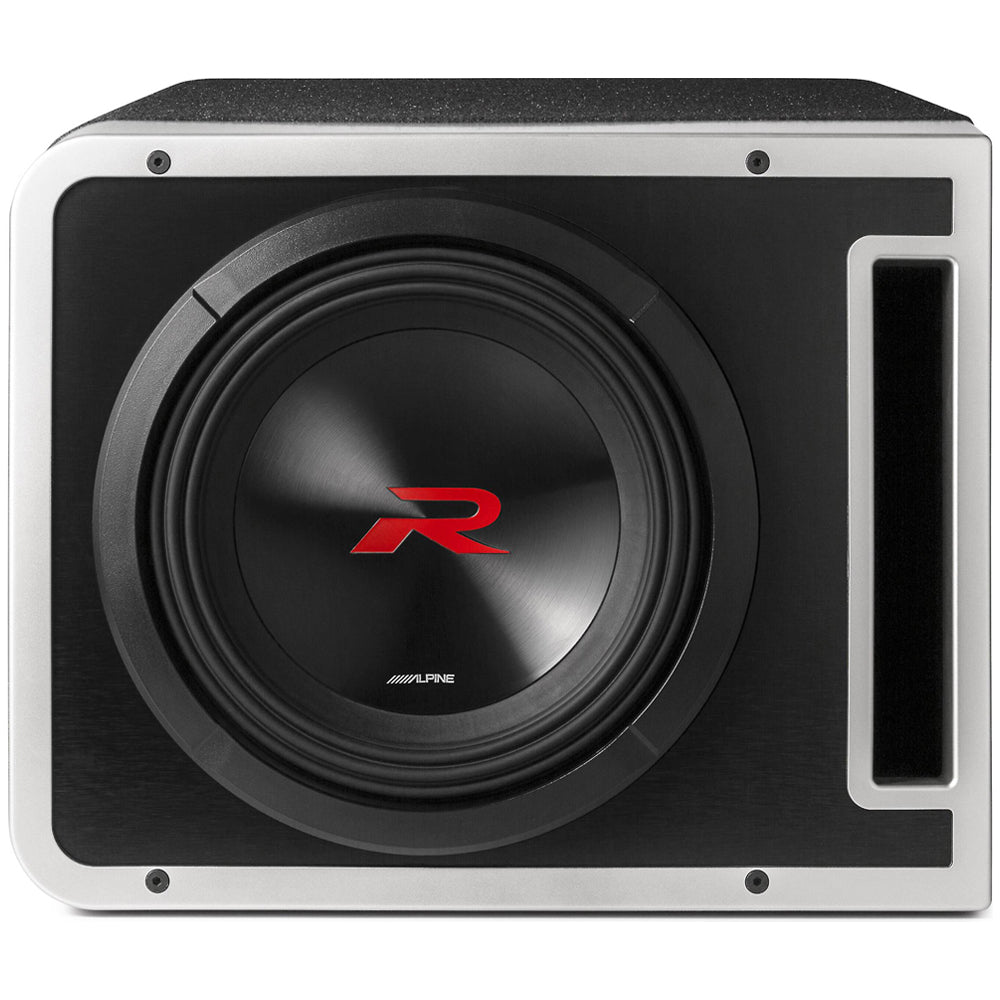

• R2-SB10V Halo Subwoofer

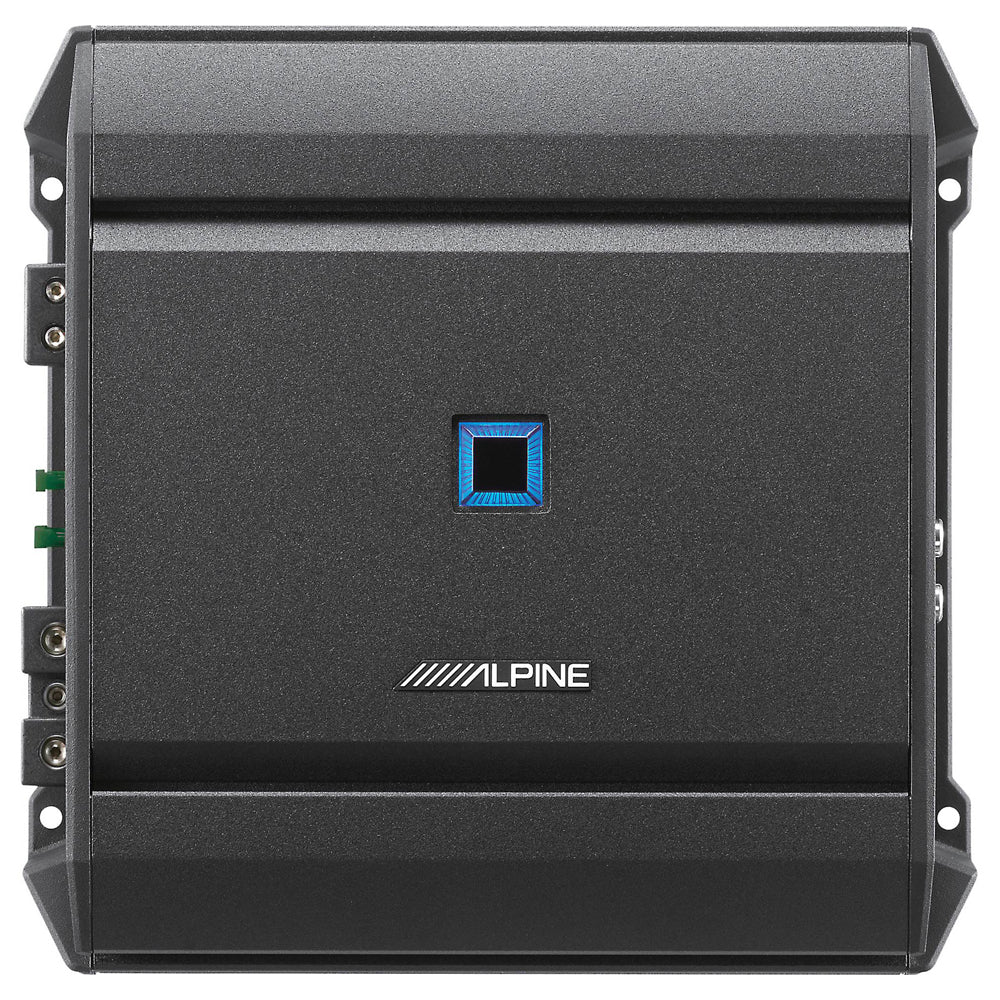

• S-A60M Mono Power Amplifier
• RUX-KNOB.2 Remote Bass Knob

R2-SB10V Features:

• Unique Alpine Halo Design
• ProLink™ ported enclosure design
• Polypropylene/Ceramic Composite Dust Cap
• Kevlar Reinforced Pulp Cone High-Performance subwoofers
• High-Amplitude Multi-Roll (H.A.M.R.) Surround
• Large Double-Stacked Magnets
• CARB-compliant 3/4-inch MDF construction
• Threaded Subwoofer Mounting Inserts (for reversible subwoofer orientation)

Specifications:

R2-SB10V Specifications:

• 750W RMS
• 2250W Peak Power Handling
• Frequency Response: 26Hz-200Hz
• Sensitivity (1W/1m): 82.3dB
• Dual 4Ω Voice Coils Wired in Parallel for a 2Ω Load (Compatible with R-A75M)
• Voice Coil: 65mm 
• X-Max: 20mm
• Magnet Weight: 123oz
• 12 Gauge OFC Speaker Box Wire
• CTA-2031 Compliant

S-A60M Specifications:

• Alpine’s Class D Amplifier Circuit
• Power Rating: 330W RMS x 1 (4ohm, 14.4V ≤ 1% THD+N); 600W RMS x 1 (2ohm, 14.4V ≤ 1% THD+N)
• S/N ratio: >85dB (ref: 1W into 4 ohm), >105dB (ref: rated power into 4 ohm)
• THD+N ≤ 0.03% (ref 1W info 4 ohm)
• Frequency Response: 10Hz-400Hz (+/-3 dB)
• Damping Factor: > 1000
• Remote bass knob compatible (RUX-KNOB.2 - included)
