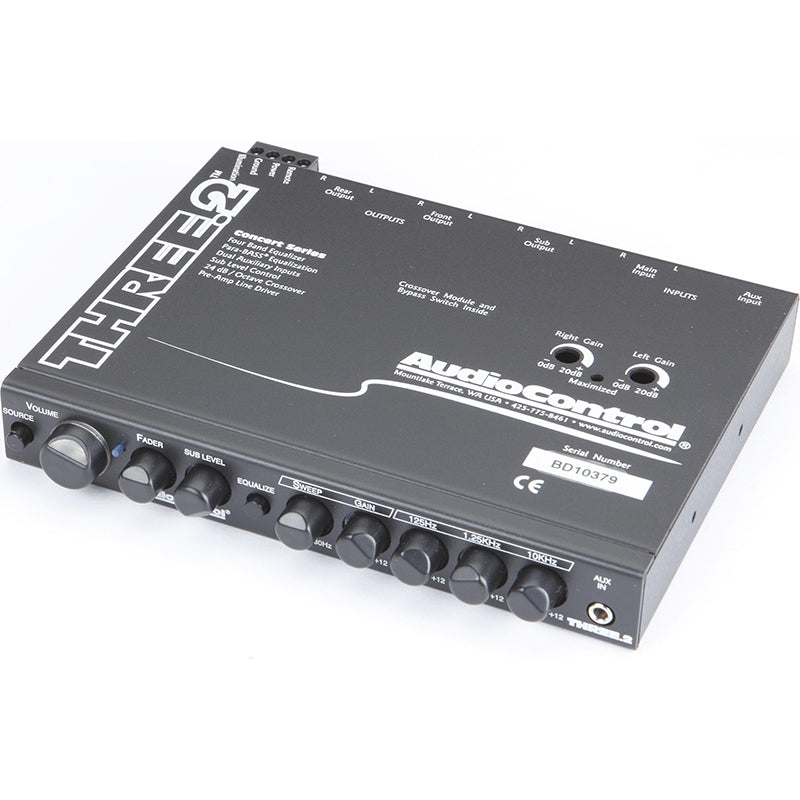

AudioControl Three.2 In-Dash Preamp Equalizer & Subwoofer Crossover with Dual Aux Inputs - Car Audio System Upgrade for Enhanced Bass & Sound Quality

Product Description

Features:

• Stereo graphic equalization
• In-dash Pre-Amp controller
• Dual stereo auxiliary inputs (3.5 mm front and rear)
• Para-BASS low-frequency contouring
• Two input channels and two, four, or six channels of output
• Stereo and Para-BASS equalization controls for maximum sound quality
• Precise 24 dB/octave electronic crossover
• Subwoofer level control optimizes bass performance
• Pre-amp line driver (13-volt peak) delivers maximum signals to amplifiers
• Pre-amp gain of 20dB
• Master volume control and fader
• Selectable illumination - Cool Blue or Hot Red LED's
• Compact 1/2 DIN chassis
• Dimensions: 1.00" H x 6.75" W x 5.00" D

Specifications:

• Maximum input/output level: 9.5 Vrms/13.5 Vpeak
• Frequency response: 20Hz - 20,000 Hz; ±1dB
• Total harmonic distortion: 0.01%
• Signal to Noise ratio: -110dB
• Input Impedance: 20 K ohms
• Output Impedance: 150 Ohms
• Input gain: 0 - 20dB
• Equalization Cut/Boost: ±12dB
• Crossover slope: 24dB/octave Linkwitz Riley
• Factory crossover setting: 90Hz
• Power supply: High headroom PWM switching
• Power draw: 250mA
• Recommended fuse rating: 1 Amp
