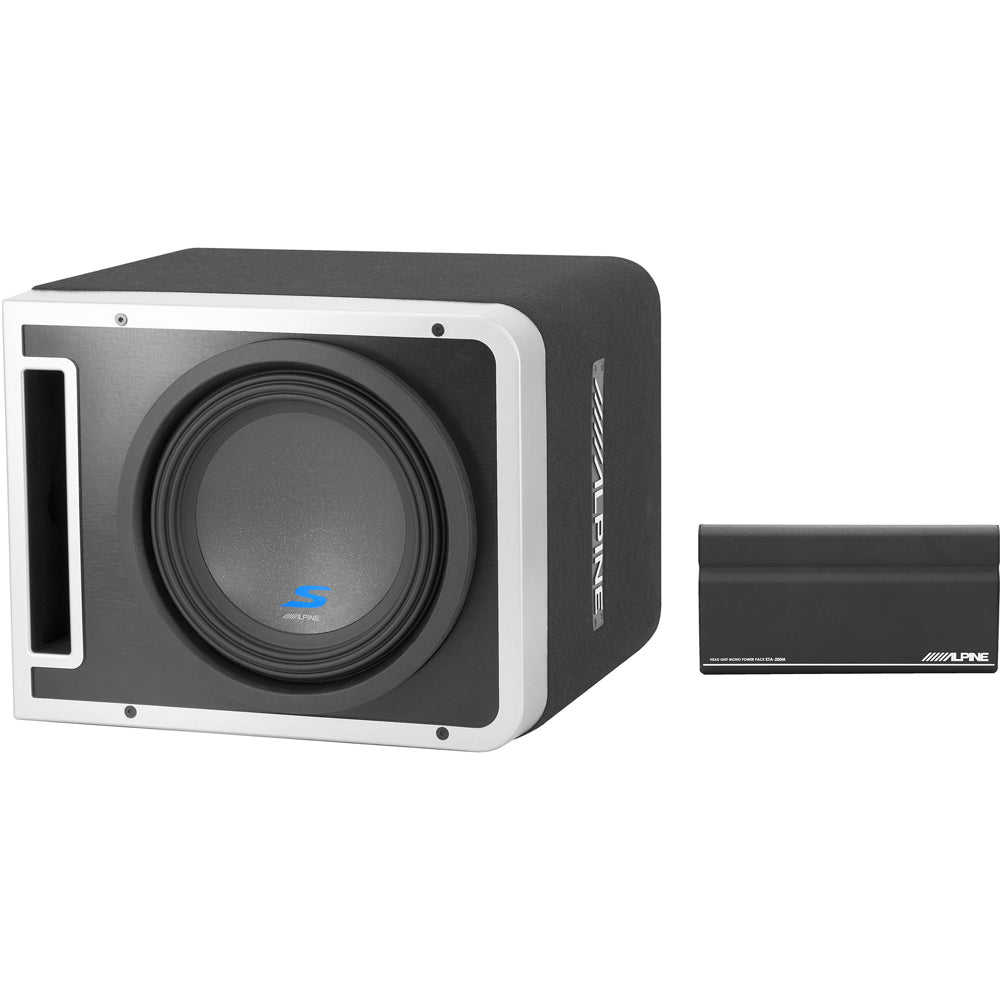

Alpine S SB10V PWR Halo S Series Subwoofer Power Package (S SB10V + KTA 200M) - High Performance Car Audio System for Bass Lovers | Perfect for Trucks, SUVs & Custom Car Audio Setups

Features:

S-SB10V Features:

• Groundbreaking Alpine Halo Design
• ProLink™ ported enclosure design
• Optimal Sound Performance
• 600W RMS Power Handling

• Includes preloaded S-W10D4 10” S-Series subwoofer
• CARB compliant 3/4-inch MDF construction
• Premium black carpet
• Silver Alpine embossed side logo badge
• Brushed aluminum finished metallic front baffle

KTA-200M Features:

• Alpine’s Exclusive Dynamic Peak Power (DPP) Technology  
• Remote Bass-Knob ready with the RUX-KNOB.2 (sold separately)
• PowerStack™ capable with the Alpine iLX-W650 (sold separately)

Specifications:

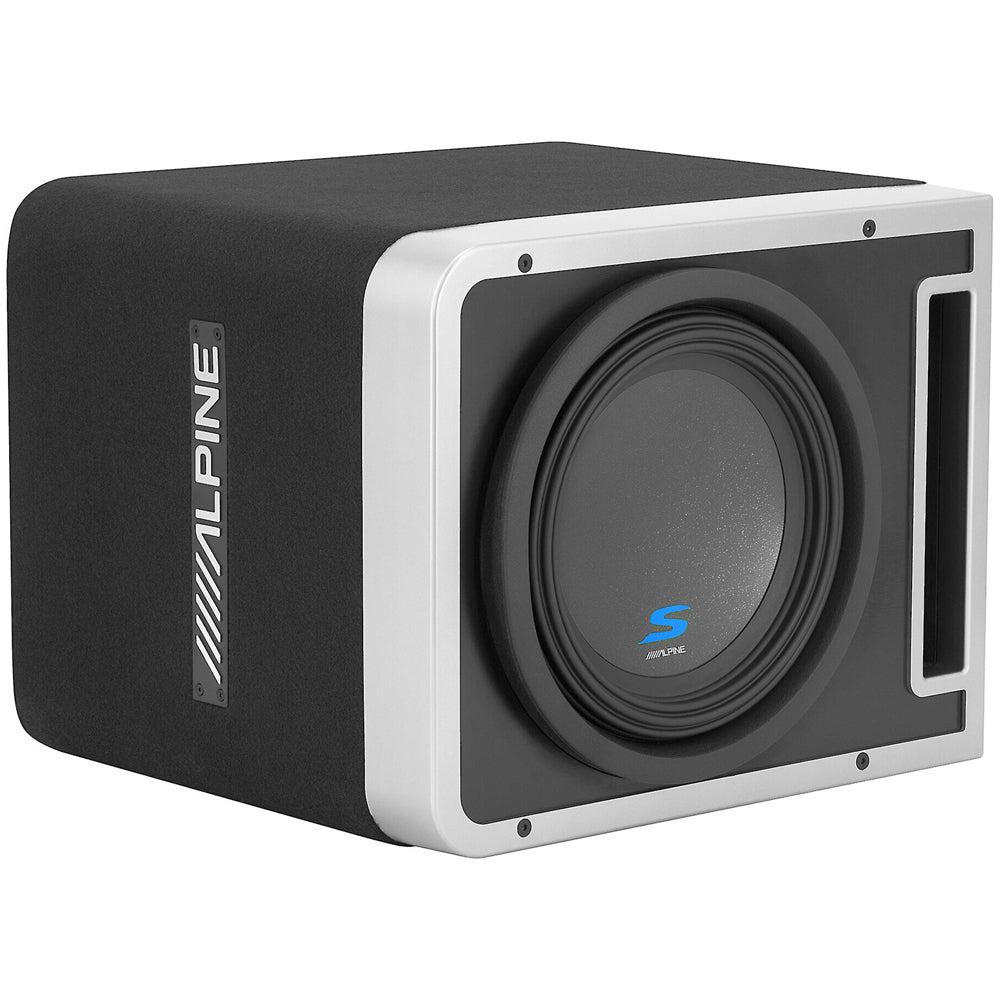

S-SB10V Specifications:

• Dimensions: 16" x 12.6825" x 14.5"
• Dual 4Ω Voice Coils Wired in Parallel for a 2Ω Load (Compatible with S-A60M)
• 12 Gauge OFC Speaker Box Wire
• Binding Post Terminal Cup
• Threaded Subwoofer Mounting Inserts (for reversible subwoofer orientation)
• 2Ω Impedance
• Frequency Response: 28-200Hz
• Vented Enclosure Tuning Frequency: 36Hz
• Sensitivity 84dB

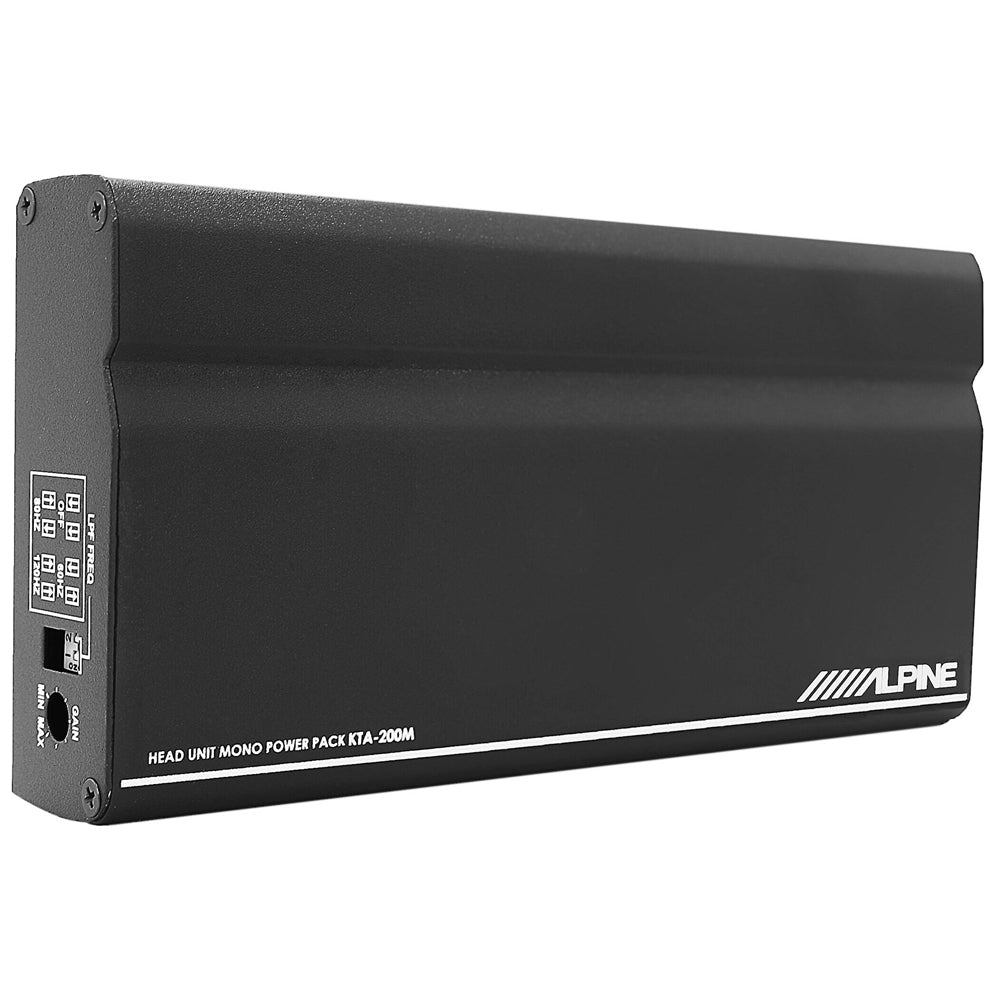

KTA-200M Specifications:

• Dimensions: 7" x 1.5" x 3.5"
• Alpine’s Class D Amplifier Circuit w/ Dynamic Peak Power (DPP) 

• 200W x 1 RMS (4Ω, 14.4V, ≤1% THD+N) 
• 200W x 1 RMS (2Ω, 14.4V, ≤1% THD+N) 
• 400W x 1 DPP (4Ω, 14.4V, ≤1% THD+N) 
• S/N >80dB (ref. 1W into 4Ω) 
• THD+N ≤0.1% (ref. 10W into 4Ω) 
• Single-side 22-pin connector 
• RCA inputs (Low range=0.2-4V) 
• Sound controls; Crossovers-Off/60Hz/80Hz/120Hz Linkwitz Riley LP Filter @ -24dB/Oct. (selectable); Input gain setting (variable)
