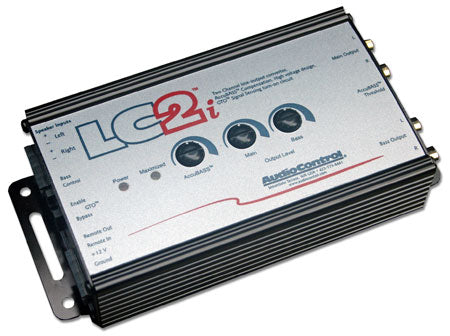

AudioControl LC2i 2-Channel High-Level to Low-Level Car Audio Converter with AccuBASS Technology - Perfect for Upgrading Factory Stereo Systems in Cars, Trucks & SUVs

Product Description

Features:

• Two channels of active speaker level inputs - Accepts 400 watt signals per channel
• AccuBASS processing for correction of bass roll-off
• Fixed and variable outputs with discrete level controls
• GTO - Signal sensing inputs
  • 12-volt trigger that will turn on LC2i
• Dual amplifier
• 9.5 volt pre-amp outs
• Level matching controls
• 12 Volt trigger output
• Optional dash remote level control
• Dimensions: 6-3/8 Inch W x 3-1/8 Inch D x 1-1/2 Inch H

Specifications:

• Maximum speaker level input: 400 watts per channel
• Maximum Preamp output: 9.5Vrms / 13V peak
• Optional Dash Level Control Remote: +0dB / -19dB
• Frequency response: 10 Hz - 100,000 Hz; ±1dB
• Total harmonic distortion: 0.01%
• Signal to Noise ratio: >110dB
• Input Impedance: 20K ohms
• Output Impedance: 150 ohms
• Power draw: 150 mA
• Recommended fuse rating: 1 Amp
