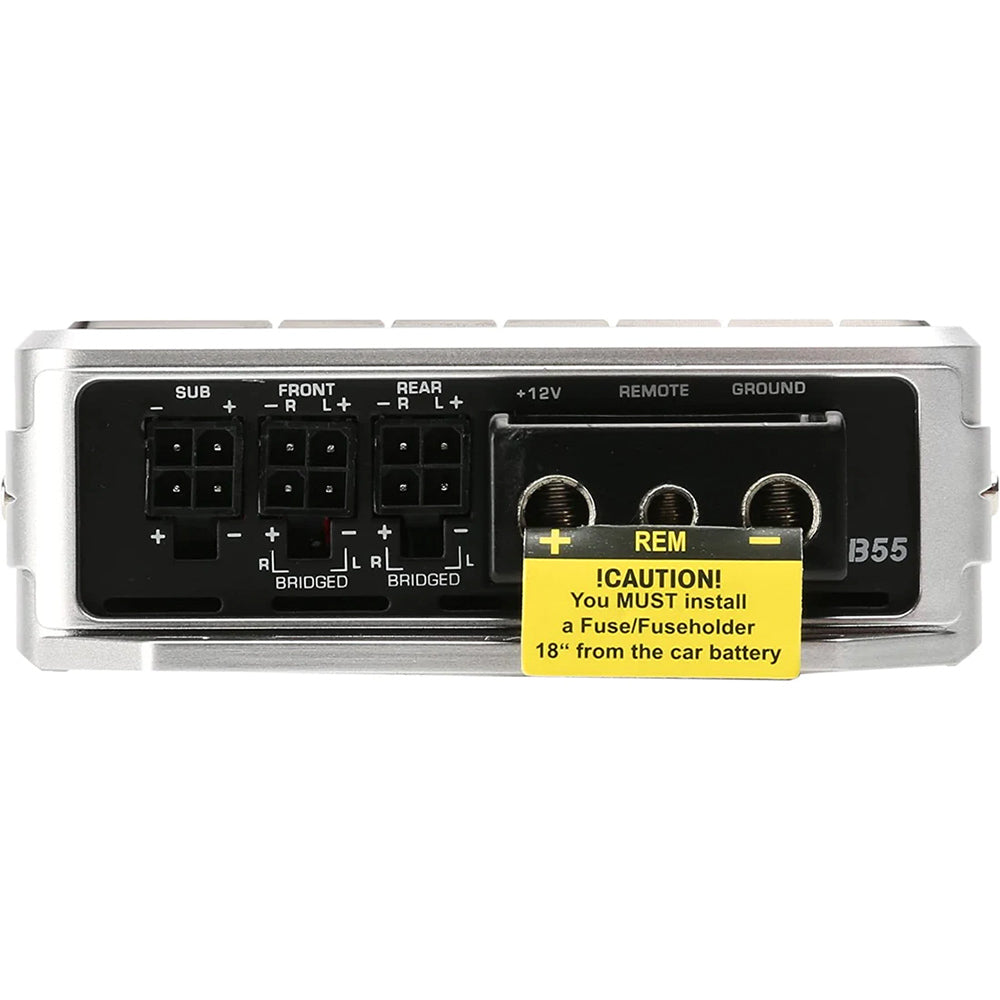

Cerwin Vega B-55 Stealth Bomber Series 5-Channel Class D Car Amplifier - 2000W Power for Car Audio System | Perfect for Trucks, SUVs & Custom Car Stereo Upgrades

Product Description

Features:

• Class D IR Chipset with DirectFET Power MOSFET Output
• Switchable 12dB HP/FLAT/LP Crossovers and VEGA Bass Boost
• BTR™ Port Optional Upgrade To Bluetooth Receiver
• Speaker Level Input With Auto Turn-On
• Advanced Rollback Power/Thermal Protection
• Crossover: 40Hz-400Hz (LP/HP)
• Frequency Response: 10Hz – 33 KHz

Specifications:

• Max Power: 1000 Watt
• RMS Power (2 Ω): 250 Watt X 2
• RMS Power (4 Ω): 150 Watt X 2
• Bridged (Mono 1 Ω): N/A
• Bridged (Mono 2 Ω): N/A
• Bridged (Mono 4 Ω): 500 Watt X 1
• Topology: Full Range Class D
• Power Supply: Full PWM
• Power Supply Threshold: 10.0 VDC - 17.0 VDC
• Idle Current: 0.7A
• THD 4 (1 KHz @4Ω): 0.5%
• S/N Ratio (A weighted @1W): -85 dBA
• S/N Ratio (A weighted @FP): -101.1 dBA
• Low Input Level: 200 mV - 10.0 V
• High Input Level: N/A
• Low Input Level: 20 KΩ
• AUX Input Level: 20 KΩ
• Output Impedance: 0.0297 Ω
• Damping Factor (50Hz @ 4Ω): >250
• Bandwidth (-3dB): 10Hz - 35Hz
• Variable High-Pass: 40Hz - 400Hz
• Variable Low-Pass: 40Hz - 400Hz
• Variable Sub-Sonic: N/A
• ATC: 25A
