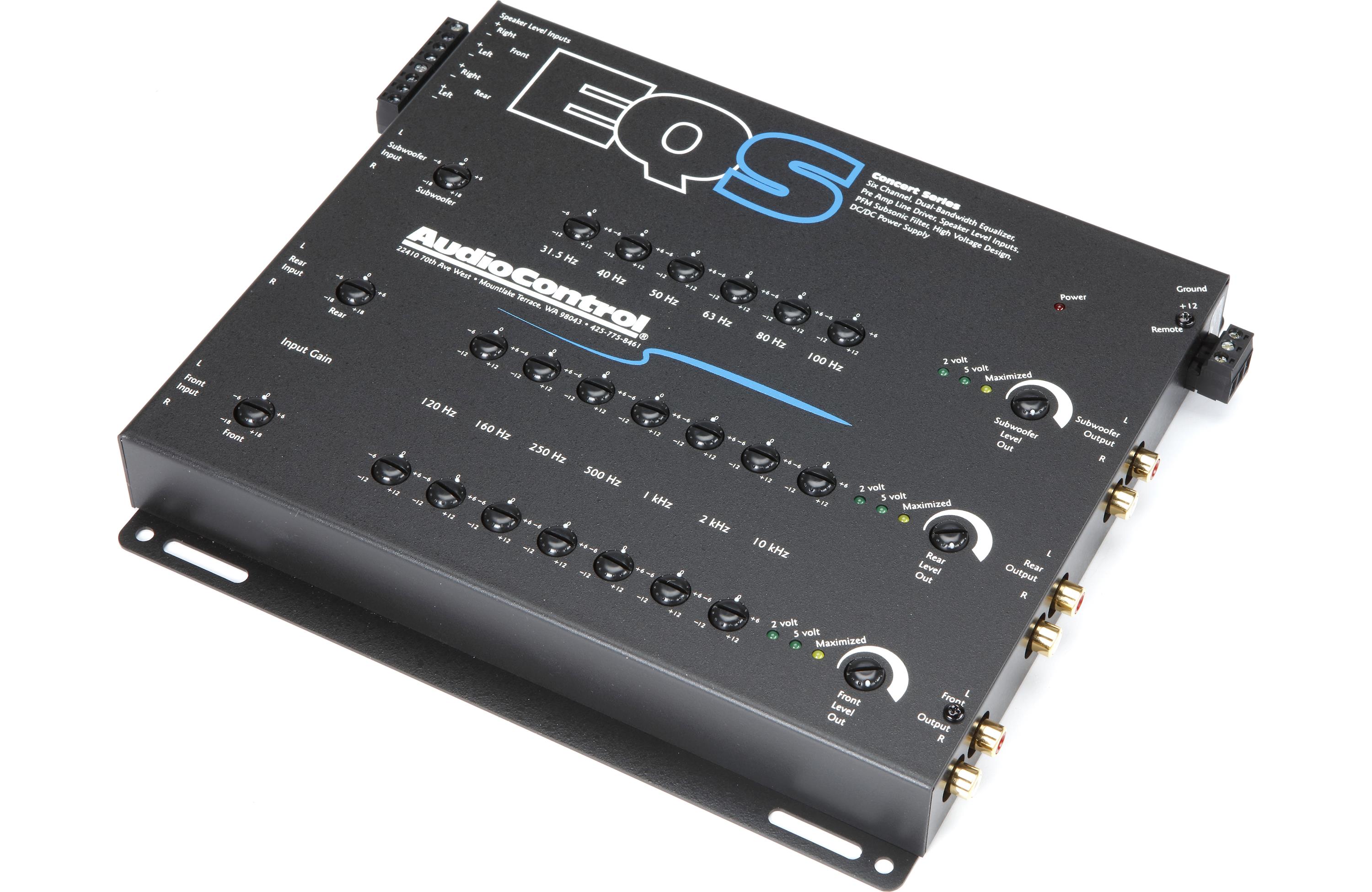

AudioControl EQS 6-Channel Car Audio Equalizer - 13-Band Graphic EQ with Trunk Mount (Black) | Perfect for Custom Car Audio Systems & Enhanced Sound Quality

Product Description

Features:

• 13-Band Graphic Equalizer
• Six Inputs and Outputs
• Dual-bandwidth Equalization
• Auto-mode Configuration Simplifies Installation
• Programmable Frequency Match (PFM) Subsonic Filter
• Speaker Level Inputs - Can Accept 400 Watt Signals!
• Balanced Line Level Inputs For Superior Noise Rejection
• Input and Output Level Matching Controls
• Built-in Line Driver
• Front / Rear / Sub Fader Compatible
• 13 Volt Signal Compatible
• Output Voltage Display

Specifications:

• Maximum input/output level: 9.5 Vrms/13.5 Vpeak
• Input/output channels: selectable: 4 or 6 channels
• Input gain: ± 18 dB
• Frequency response: 0Hz-100kHz ± 1dB
• Equalization center frequencies:
• 31.5, 40, 50, 63, 80, 100, 120,160, 250, 500, plus 1k, 2k, and 10k Hz
• Total harmonic distortion: 0.003%
• PFM subsonic filter slope: 18 dB/octave
• PFM frequency: programmable 15 to 100 Hz (Factory shipped @ 33 Hz)
• Signal to Noise ratio: -110dB
• Balanced input noise rejection: >60dB
• Input Impedance: 20 K ohms
• Output Impedance: 150 Ohms
• Power supply: High headroom PWM
• Power draw: 500mA
• Recommended fuse rating: 2 Amp
